Discussion Starter · #1 · (Edited)
I hard-wired my radar detector today, thought I would put together a DIY since I had to figure this out for myself because I couldn't find a DIY guide online! This guide is to install it clipped onto the passenger side sun visor, but you can reroute the wiring to set it up wherever you want.

Disclaimer: Don't break stuff. If you do, don't blame me as I accept zero liability. Ask questions if you're unsure and I'll be more than happy to answer them.

INGREDIENTS:

Pliers, electrical tape, a socket wrench with a 10mm socket and one or two 20amp mini ATM fuses. Heat gun optional. You MAY want to buy a spare 20amp fuse or two. In case you drop the 20amp fuse into the bowels of the glove box fuse box hell and never find it again. Mini fuses - ATM mini fuses.

A) ATM Mini Fuse Tap. You can find these at most auto parts stores. My local NAPA store had one in stock.

B) Ring wire connector. I'm not 100% sure which size (sorry) but it was at least 4mm inner diameter:

C) Spudger, or another plastic tool. I suppose you could use a dull butter knife but I don't recommend it as it will be used to wedge some trim apart for a few moments. I had a ton of these laying around because I work on computers a lot:


D) You'll also need the V1 hardwire kit that came with the radar detector. Specifically, the rounded module piece:


Mine has two thin wires coming out of the back (not pictured), one red (12v power) and one black (ground).

The kit also has a long telephone-wire-looking cable. You want that.

RECIPE:

What we're tapping for power is a 20amp fuse. Specifically, the windshield wiper fuse. This fuse is hot with power, meaning it only supplies power when the ignition is on. This way, your detector will shut off when you shut the car off. It won't drain your battery. It's also 12 volt.

Turn your car off.

1. Empty your glove box. Grab the sides and push them inward in order to lower the glove box completely, because we're going to tap a fuse in the fuse box located behind the glove box.


2. Pull the 20amp fuse out of this location and for god's sake DONT DROP IT!


2a. Take the 20amp fuse, and plug it into the fuse tap (A) so that you don't lose it for now. Take one of your other 20amp fuses and plug it into the other fuse slot on the fuse tap.

2b. Sorry I did not take photos of this step but it's not too hard. Message me if you have questions! Take the red 12v power wire from the radar detector kit module (D). Now, mine did not have anything at the end of it - it was simply severed. What I did was strip some insulation off the end of it, and connect it to the long purple wire coming out of the the fuse tap (A) that has a connector and heat-shrink tubing on it. Insert the wire, crimp it down with some pliers, and if you have a heat gun, go ahead and heat shrink it. If not, just wrap it up well with some electrical tape.

3. Take the black wire coming out of the kit module (D) and do the same as the other wire - strip the end of it, and push it into the ring wire connector (B). Crimp it down, heat it up, or wrap in electrical tape.

4. Back to this picture:

See that stud/nut to the right? That's your ground. Get your 10mm socket wrench and take the nut off. It takes quite a few turns. Don't drop the nut!

5. Plug the fuse tap into the fuse location that you pulled that fuse out of earlier. The one I circled on the left.

6. Put the ring wire connector (ground wire (B)) on the stud, and tighten the nut back down. You may notice that the fit isn't great, because the stud is in a recessed dimple, but the ring wire connector is flat so it wants to go on at an angle. You can just bend the ring wire connector near the base so that it sits down in that dimple. Tighten it up.

7. Test your detector! Do this before finishing up or else you'll kick yourself if it doesn't work. Plug the telephone cable (I mean, that's exactly what it looks like...) into the power port of the kit's module (D). Plug the other end into the radar detector. Turn the ignition and the detector on to try it out. Make sure your wipers still work too.

8. Working? Great! Move on. If it's not working, make sure you have two fuses plugged into the fuse tap and that they're both fully seated, and that the fuse tap itself is in the correct slot and also seated all the way in.

9. Unplug the telephone wire and grab your spudger or other thin plastic tool. You're going to insert it, carefully, somewhere along this dashed line:

While it's in there, wedge it open enough to feed the telephone wire (I keep calling it that) in through the crack and down into the fuse box area. Make sure you feed in enough of it.

10. Snake the wire forward towards the A-pillar. If you look carefully, there are panel gaps that you can fit the wire through easily. Do that, and keep feeding the wire up the A-pillar weather-stripping by peeling it back bit by bit:


11. Keep snaking it up the A-pillar. I followed this path:


...and up the front of the headliner. Here's a picture taken from the front of the car, looking backwards:



12. Keep feeding it over to the sun visor clip area. Mine ended up like this:


I had some extra wire left over so I just stuffed it up above the headliner at the top of the windshield.

Finally, go back to the glove box area. Plug the loose end of the telephone wire back into that kit module. The kit module should have adhesive velcro on it. I used that to fasten it to the passenger side of that fuse box area so that it wouldn't bounce around or rattle. You could also zip-tie it somewhere in there or just shake it until it stops crying. Umm..

Put your glove box back in. Just reverse the steps from earlier - push the sides in and put it back up in there. If by some chance you leaned on the glove box while it was in the down position, and it completely came off of the hinge (mine did!), it's not too hard to put back in correctly. Just push the sides in again and get the tabs on the sides of the glove box into the housing, then use your fingers to feel along the bottom of the glove box edge - the edge will have clips on it that snap onto the long black metal rod that it hinges on. You can snap one side at a time, it was easier that way for me. It takes a decent push to get it to clip back on there. You may want to look at the back of the glove box or the hinge it clips onto to get a better mental image of what you're trying to accomplish, since you'll be working blind and by finger feel only.

That's it. Enjoy. PM me if questions.


·
Registered
Joined
·
369 Posts
Great write up! Thanks for the effort.

Sent from my HTC One using Tapatalk

  • Like
Reactions: shmi

·
Registered
Joined
·
678 Posts
Excellent, thanks.

I'm wondering if there's switched 12V power up top we could tap in to... running a wire up the A pillar gives me airbag concerns. I might have to do some probing when I get a chance.


·
Registered
Joined
·
545 Posts
Discussion Starter · #5 ·
Excellent, thanks.

I'm wondering if there's switched 12V power up top we could tap in to... running a wire up the A pillar gives me airbag concerns. I might have to do some probing when I get a chance.
I have the same concern. I kept the wire as close to the outside of the pillar as possible so it wouldn't get in the airbag's way during deployment, however they expand very big very fast so who knows if it will really work. When I have time I'll try to take the A-pillar trim off completely. Maybe I can use some electrical tape and tape the wire down out of the way, or zip-tie it to the existing wiring going through there.

I did look for a way to tap in up top, but unfortunately I couldn't find a good spot to stuff the module and all the wiring in the headliner. I pulled out the dome light/sunroof switch panel to look around in there, even pulled the headliner down a bit but without taking the headliner down completely I didn't see an obvious location. As for power, I did pull up an electrical diagram for that switch panel up top but I couldn't access the 12v and ground that I wanted to because they were stuffed so far into the headliner, and there was little slack to work with. I also wanted something easily reversible, and unplugging this from the fuse box is just dead simple.


·
Registered
Joined
·
488 Posts
Whoa thats awesome.....hey I thought radar detectors were.....NVM :)


·
Registered
Joined
·
678 Posts
Gotcha, sounds like this is the best route to go then. I'm hardwiring my Passport 8500 soon.

I'm pretty sure the exploding airbag would discard the cable like it was nothing, I'm just a bit cautious.


·
Registered
Joined
·
545 Posts
Discussion Starter · #10 ·
Edited to change a few things that I missed - you actually need two 20 amp fuses plugged into the fuse tap, not one. I also tested flipping the fuse tap around and it really doesn't matter which way you put it in, it works in either orientation. I recommend buying some extra fuses though as I dropped one during installation and couldn't find it for a while. It might save you some frustration.


·
Registered
Joined
·
82 Posts
Edited to change a few things that I missed - you actually need two 20 amp fuses plugged into the fuse tap, not one. I also tested flipping the fuse tap around and it really doesn't matter which way you put it in, it works in either orientation. I recommend buying some extra fuses though as I dropped one during installation and couldn't find it for a while. It might save you some frustration.
I could only find a 10 amp tap locally, despite efforts to the contrary.
I tapped the Reverse Light fuse (believe it was F6 or 6th down on the outside right of the panel), as I use these a lot less than other switched circuits. Used the lower terminals in the tap (or closest to the fuse block) for the lights, and the upper terminals for the Valentine 1.
My Valentine 1 install kit came with a 2 amp Mini-Blade fuse and a 1 amp glass tube fuse, to be used in a serial arrangement, so I figured the 7.5 amp circuit could handle the low wattage reverse bulbs and a 1 amp detector.

I was charged for the upgrades on my V1 today, hopefully meaning the work is complete. It should be here early next week, and I will post the results in a pass/fail fashion shortly after.


·
Registered
Joined
·
545 Posts
Discussion Starter · #13 ·
I could only find a 10 amp tap locally, despite efforts to the contrary.
I tapped the Reverse Light fuse (believe it was F6 or 6th down on the outside right of the panel), as I use these a lot less than other switched circuits. Used the lower terminals in the tap (or closest to the fuse block) for the lights, and the upper terminals for the Valentine 1.
My Valentine 1 install kit came with a 2 amp Mini-Blade fuse and a 1 amp glass tube fuse, to be used in a serial arrangement, so I figured the 7.5 amp circuit could handle the low wattage reverse bulbs and a 1 amp detector.

I was charged for the upgrades on my V1 today, hopefully meaning the work is complete. It should be here early next week, and I will post the results in a pass/fail fashion shortly after.
I would think that fuse arrangement should work as well. Best of luck, let me know how it turns out.

Out of curiosity, what upgrades did they do to the V1? I was never even aware upgrades were possible.


·
Registered
Joined
·
82 Posts
I would think that fuse arrangement should work as well. Best of luck, let me know how it turns out.

Out of curiosity, what upgrades did they do to the V1? I was never even aware upgrades were possible.
My V1 is 9 or 10 yrs old, and if I remember correctly it was a Logic Circuit performance upgrade with new K/Ka channels and filters. Two new circuit boards and a refreshed warranty!

Go to www.Valentine1.com and on the right side near the top there is a grey box to enter your 8 digit serial number. the page will pop-up (so turn off the pop-up blocker) and let you know if upgrades are available. My upgrade ended up at $199 plus $14 return shipping. Better than a new $400 unit plus extras plus shipping...

One thing I failed to mention earlier, the reverse lights still work just fine, with the original fuse in the bottom terminals. When the V1 gets 'home', I will install the 2 amp Mini-Blade and finish the install. I will try to post pics of my install when it's complete.


·
Registered
Joined
·
82 Posts
Got my V1 back today:), but left the bracket @ home:mad:. I'll post what the card they sent back says in reference to the upgrades performed.


·
Registered
Joined
·
68 Posts
I installed mine this past weekend along with a Gentex mirror for Homelink. It was pretty easy to pull out the a-pillar; it's held in by two metal clips on the vertical piece and two plastic tabs on the bottom. Just be careful taking it out so the plastic tab doesn't hurt the dash. I zip-tied the radar and mirror wiring onto the existing wiring bundle and it's not in front of the airbag. The only thing I've run into so far is if the radar is unplugged the cord can fall out of the headliner. I'll probably shove some foam or weatherstripping up there to keep it in place.

20140316_142812.jpg 20140315_172916.jpg 20140315_171055.jpg 20140316_142805.jpg 20140316_142800.jpg


·
Registered
Joined
·
545 Posts
Discussion Starter · #19 ·
I installed mine this past weekend along with a Gentex mirror for Homelink. It was pretty easy to pull out the a-pillar; it's held in by two metal clips on the vertical piece and two plastic tabs on the bottom. Just be careful taking it out so the plastic tab doesn't hurt the dash. I zip-tied the radar and mirror wiring onto the existing wiring bundle and it's not in front of the airbag. The only thing I've run into so far is if the radar is unplugged the cord can fall out of the headliner. I'll probably shove some foam or weatherstripping up there to keep it in place.
Excellent, glad to see the guide helped out. Thanks for posting the pictures and steps for removing the pillar trim, I still need to do that myself to zip tie the wiring in.

Sent from my Nexus 5 using Tapatalk


·
Registered
Joined
·
68 Posts
Thank you for your well documented install. I did mine today using your guide.

Just a couple of updates from my install.


  • Be careful if you purchase the ATM mini fuse tap, the one I bought on amazon was slightly different (circuit blade style) and I didnt catch it until I was full into the install. A quick trip to Napa for the right part (mini blade style) got me back on track.
  • I used some velcro to mount the V1 supplied 2 prong jack to the side of the fuse box. It seems pretty secure.
  • When I was wrenching on the ground screw I knocked the glove compartment on to the floor. I took a look and saw how easy it was to remove and certainly provides a lot more elbow room without it in the way. Just pull straight out from the hinge point. See photos to see the connections.
  • I routed the cable a little different towards the bottom, I just kept going down the door lining all the way to the bottom of the glove box where there was a nice crease. See photo.
  • I'm using V1 mounting bracket I had in a prior vehicle that I got on amazon that mounts to the mirror which gives a real nice and sturdy connection that is fully adjustable.

    MirrorMountTM Radar Detector Mirror Mount - V1 Radar Detectors



Thanks again and I help these notes help the next installer too. :)

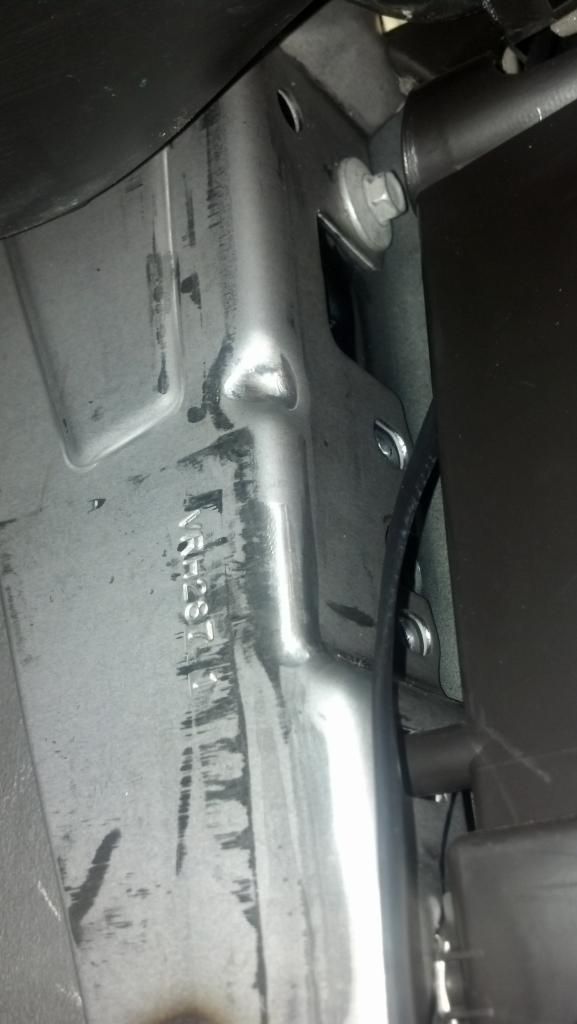

View of hinge area with glove compartment completely removed. (below)

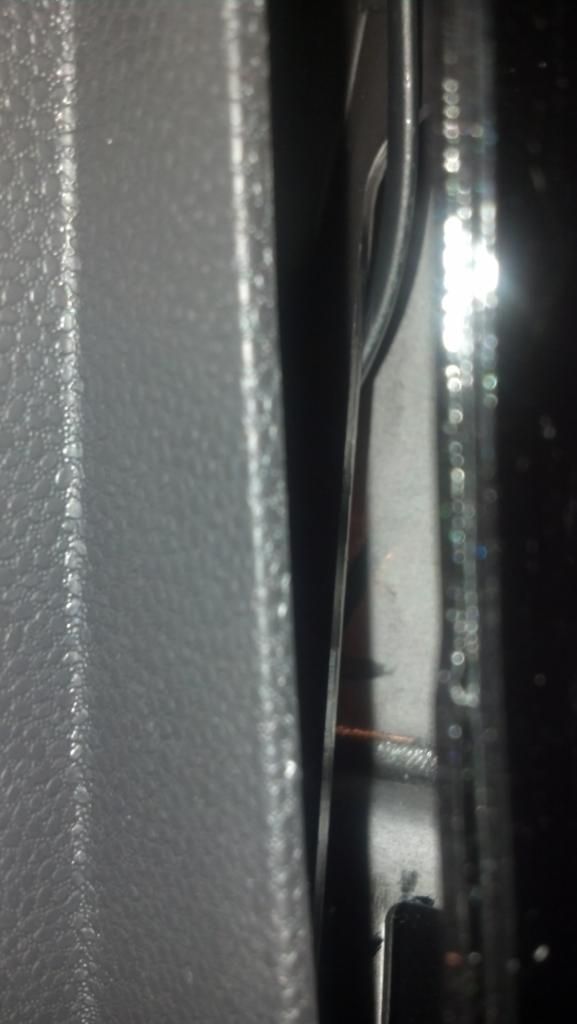

Bottom view of the glove compartment hinge area. (below)

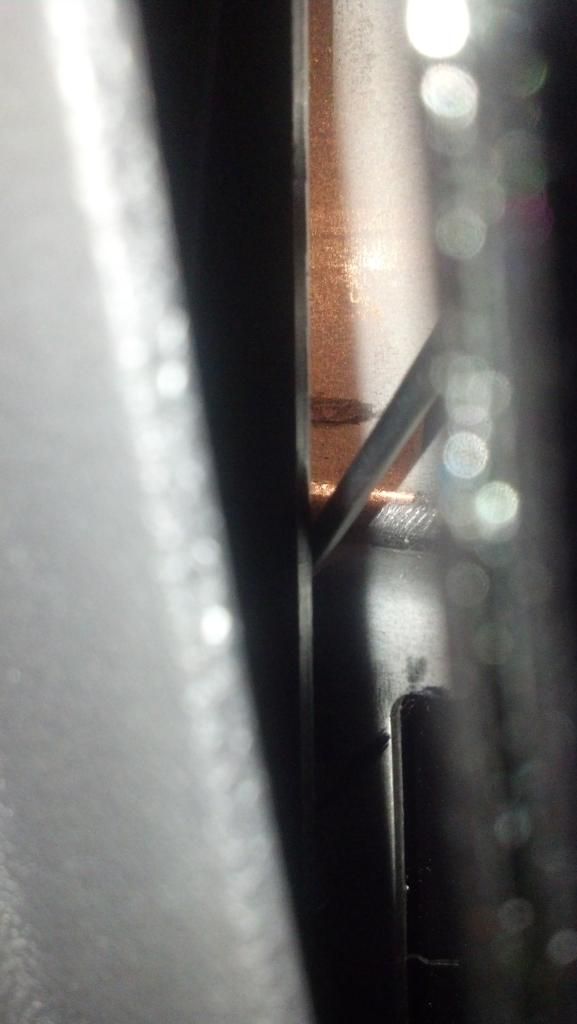

Routing point from door lining to glove compartment area. (below)
